BR-2355
One-Piece Toilet
VELA™
12″ rough-in · 1.28 gpf
A one-piece elongated toilet in vitreous china with a rimless, glazed bowl and a concealed trapway behind a side cover.
Built for a 12″ rough-in and rated at 1.28 gpf (4.8 L) single flush, with a slow-close seat and a chrome side flush lever.
Dimensions
- Length
- 26-1/2″ (675 mm)
- Width
- 15″ (380 mm)
- Height
- 28″ (710 mm)
- Seat height
- 16″ (405 mm)
- Supply height
- 6″ (152 mm)
- Rough-in
- 305 mm [12″]

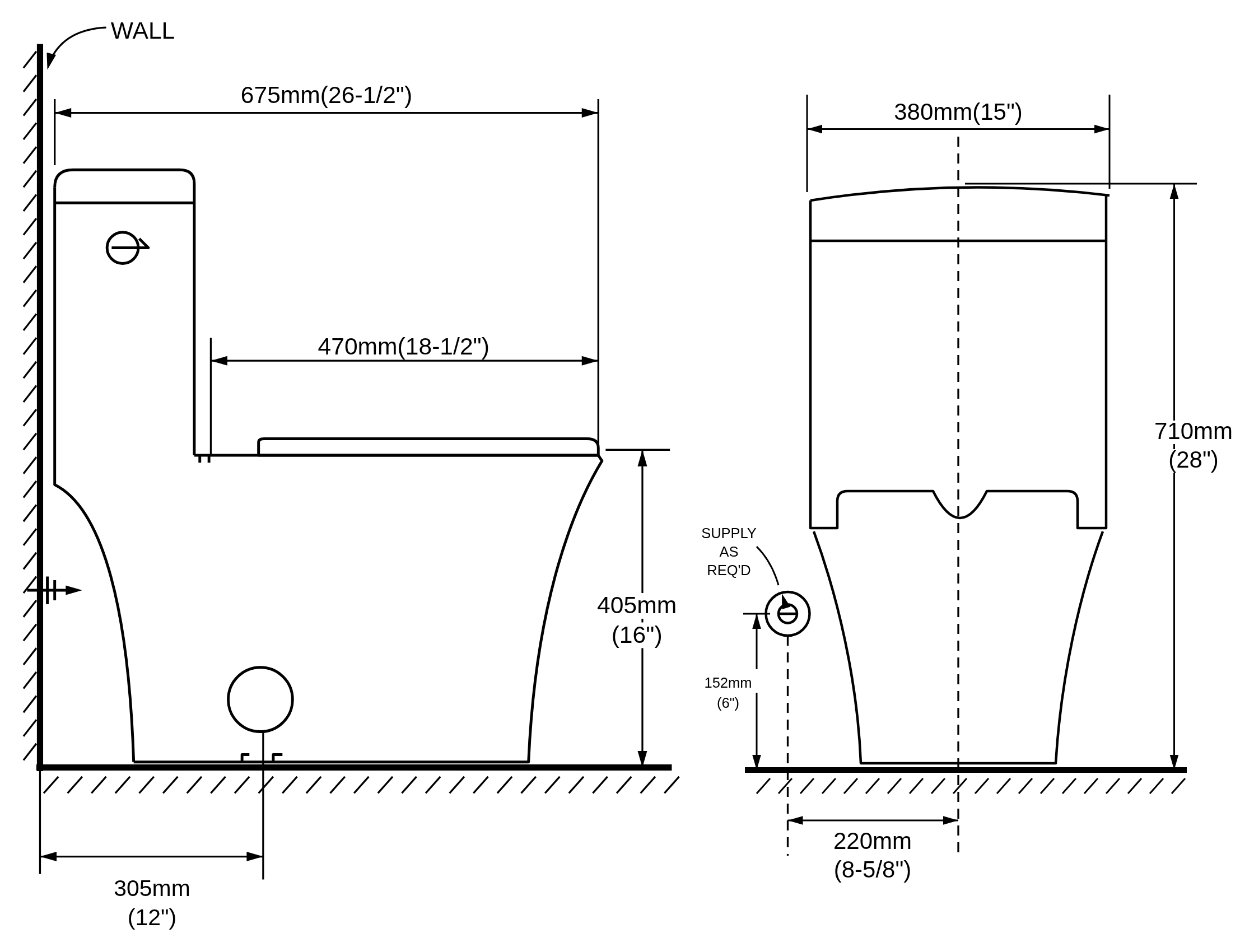

All dimensions are nominal. Confirm actual measurements on the dimensioned drawing before installation.
Product features
- 12″ (305 mm) rough-in
- Single flush: 1.28 gpf / 4.8 L
- Rimless bowl with glazed surface
- Elongated siphon-action bowl
- 2″ fully-glazed trapway
- Concealed trapway with side cover
- Slow-close seat
- Chrome side flush lever, left side
- 100% factory flush tested
- ADA per ICC/ANSI A117.1-2009
Specifications
| Configuration | One-piece; concealed trapway with side cover |
|---|---|
| Bowl shape | Elongated |
| Rough-in | 12″ (305 mm) min., finished wall to C/L of outlet |
| Overall length | Nominal 26-1/2″ (675 mm) |
| Overall width | Nominal 15″ (380 mm) |
| Overall height | Nominal 28″ (710 mm) |
| Seat height | 16″ (405 mm) |
| Supply height | 6″ (152 mm), location as required (suggested) |
| Outlet C/L to bowl front | 18-1/2″ (470 mm) |
| Base width | 8-5/8″ (220 mm) |
| Material | Vitreous china |
| Glaze | Glazed surface |
| Flush rate | Single flush 1.28 gpf / 4.8 L |
| Bowl | Rimless; elongated siphon-action bowl |
| Trapway | 2″ fully-glazed |
| Flush lever | Chrome side lever, left side |
| Seat | Slow-close |
| Testing | 100% factory flush tested |
| Included | Supply not included (order separately). Supply location shown is suggested |
| Standards (as stated) | ADA requirements of ICC/ANSI A117.1-2009 |
Nominal sizes are rounded; refer to the dimensioned drawing for actual dimensions.
All data from the BR-2355 spec sheet. Product dimensions may vary slightly due to industry-standard manufacturing tolerances. Confirm actual measurements prior to installation.
