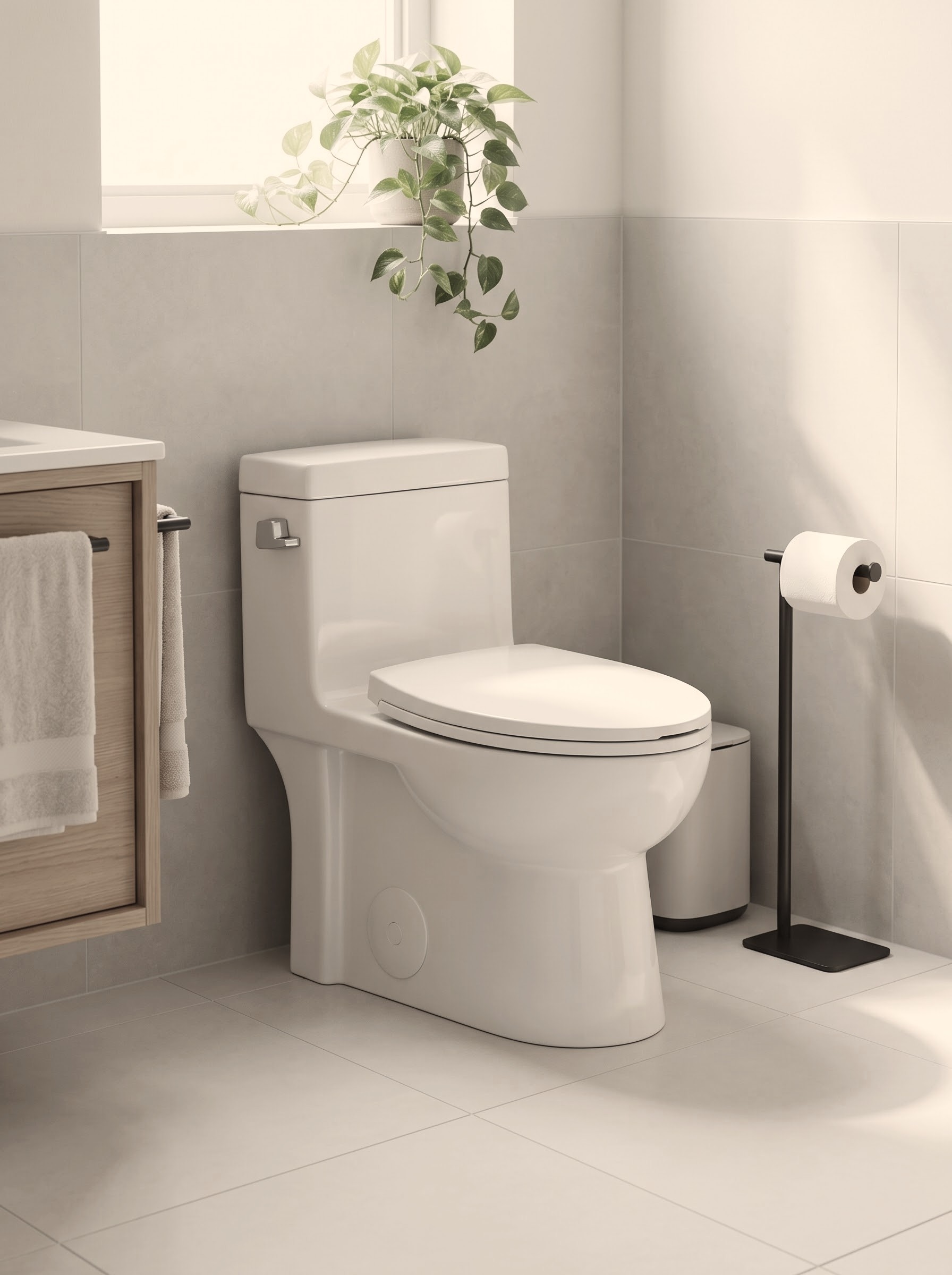

Images are for presentation; refer to the spec sheet for exact details.
BR-2340
One-Piece Toilet
LUMA™
10″ rough-in · 1.28 gpf
A one-piece elongated toilet in vitreous china with self-clean glazing.
Built for a 10″ rough-in and rated at 1.28 gpf (4.8 Lpf), with comfort height and a soft-close seat.
Dimensions
- Length
- 27.95″
- Width
- 15.16″
- Height
- 29.13″
- Bowl height
- 16.34″
- Rough-in
- 254 mm [10″]

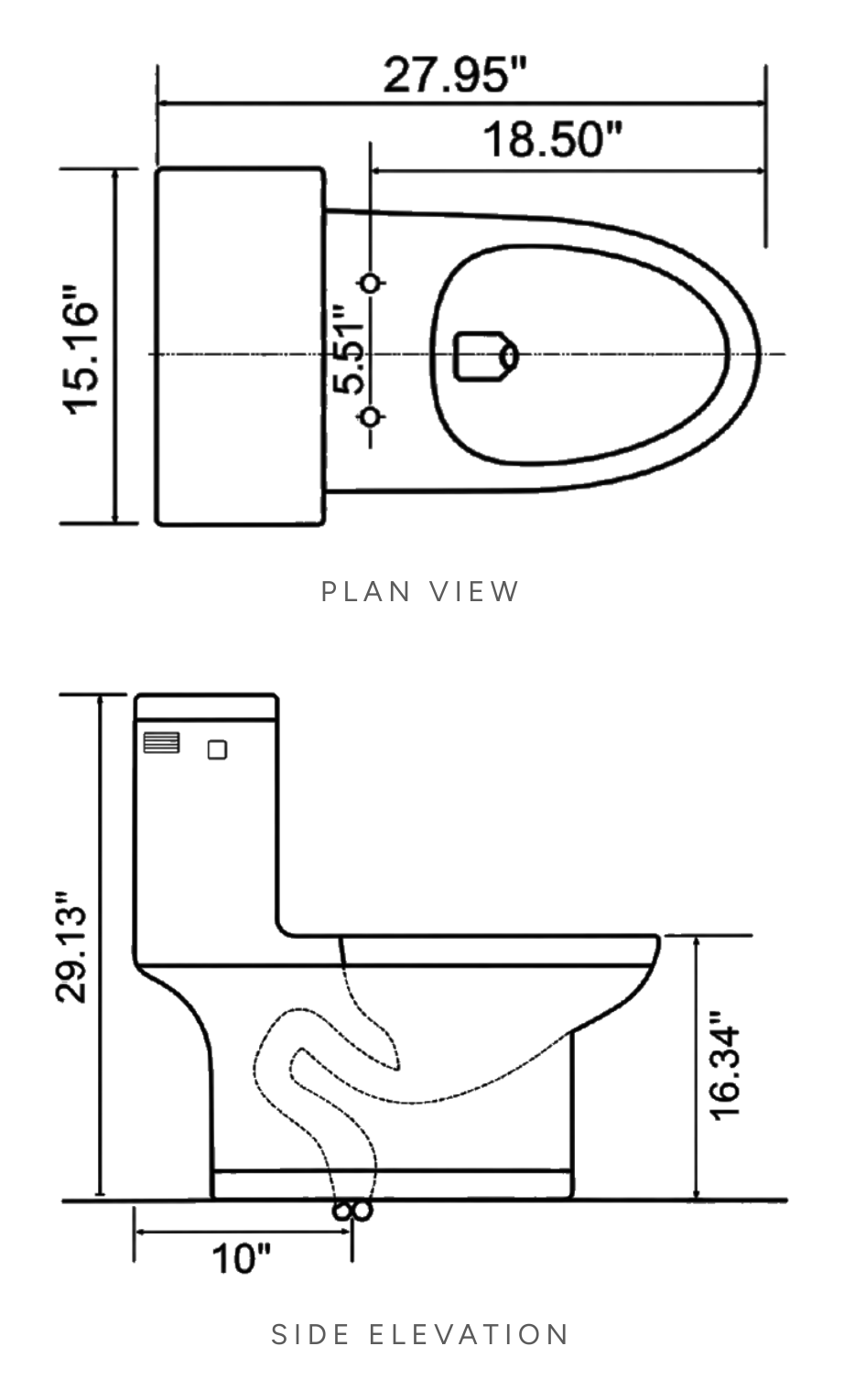

All dimensions are nominal. Confirm actual measurements on the dimensioned drawing before installation.
Product features
- 10″ (254 mm) rough-in
- High efficiency: 1.28 gpf / 4.8 Lpf
- 2″ fully-glazed trapway
- R&T cUPC certified flush valve
- Comfort height, soft-close seat
- 100% factory flush tested
- cUPC; ADA per ICC/ANSI A117.1-2009
Specifications
| Configuration | One-piece |
|---|---|
| Bowl shape | Elongated |
| Rough-in | 10″ (254 mm) min., finished wall to C/L of outlet |
| Overall length | 27.95″ (per drawing) |
| Overall width | 15.16″ (per drawing) |
| Overall height | 29.13″ (per drawing) |
| Bowl height | 16.34″ (per drawing) |
| Material | Vitreous china |
| Glaze | Self-clean glazing |
| Flush rate | 1.28 gpf / 4.8 Lpf (high efficiency) |
| Flush valve | R&T cUPC certified water flush valve |
| Trapway | 2″ fully-glazed |
| Features | Comfort height with soft-close seat; chrome-plated lever; 100% factory flush tested |
| Included | 2 bolt caps. Supply not included (order separately) |
| Standards (as stated) | ASME A112.19.2M; cUPC (IAPMO); ADA requirements of ICC/ANSI A117.1-2009 |
All data from the BR-2340 spec sheet. Product dimensions may vary slightly due to industry-standard manufacturing tolerances. Confirm actual measurements prior to installation.
