BR-2335
Two-Piece Toilet
MONO™
12″ rough-in · 1.28 gpf
A two-piece elongated toilet with a siphon-action jetted bowl and Vortex rimless design.
Single flush at 1.28 gpf (4.8 L), with a 1,000 g MaP score.
Dimensions
- Length
- 29.13″
- Width
- 18.11″
- Height
- 31.30″
- Bowl height
- 16.54″
- Rough-in
- 305 mm [12″]

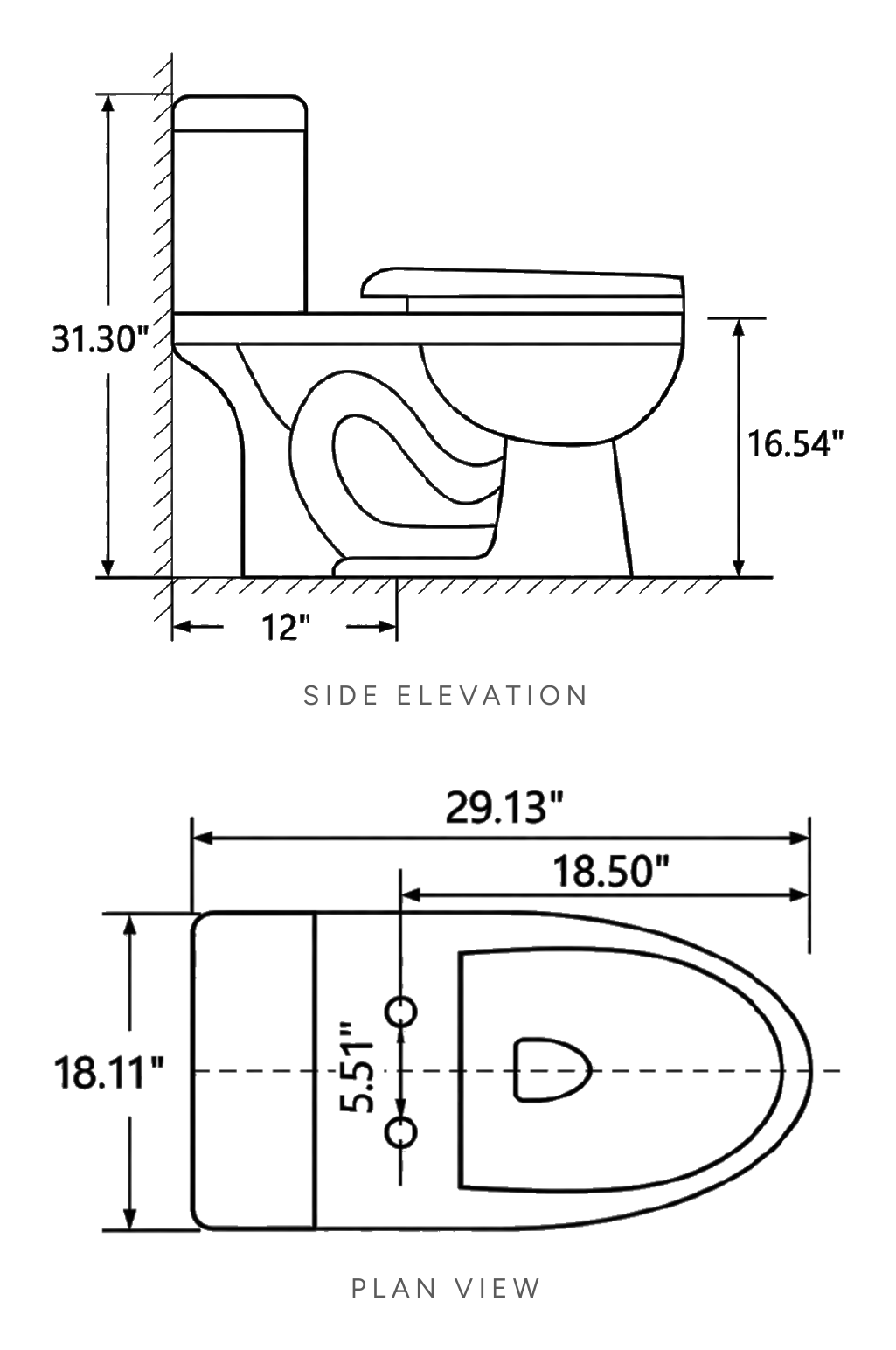

All dimensions are nominal. Confirm actual measurements on the dimensioned drawing before installation.
Product features
- 12″ (305 mm) rough-in
- Single flush 1.28 gpf (4.8 L), HET
- 1,000 g MaP score at 1.28 gpf
- Oversized 3″ flush valve; 2″ glazed trapway
- Soft-close seat, chrome-plated lever
- Floor bolts and wax included
- 1-year warranty on entire toilet
Specifications
| Configuration | Two-piece |
|---|---|
| Bowl shape | Elongated |
| Rough-in | 12″ (305 mm) min., finished wall to C/L of outlet |
| Overall length | 29.13″ (per drawing) |
| Overall width | 18.11″ (per drawing) |
| Overall height | 31.30″ (per drawing) |
| Bowl height | 16.54″ (per drawing) |
| Flush rate | Single flush 1.28 gpf (4.8 L); HET |
| Flush valve | Oversized 3″ flush valve |
| Trapway | 2″ glazed |
| Bowl action | Siphon action jetted bowl with Vortex rimless |
| Performance | 1,000 g MaP score at 1.28 gpf |
| Features | Soft-close seat; chrome-plated lever |
| Included | Floor bolts & wax. Supply not included (order separately) |
| Standards (as stated) | ASME A112.19.2-2018 / CSA B45.1-18; cUPC (IAPMO); ADA requirements of ICC/ANSI A117.1-2017 |
| Warranty (as stated) | 1-year warranty on entire toilet |
All data from the BR-2335 spec sheet. Product dimensions may vary slightly due to industry-standard manufacturing tolerances. Confirm actual measurements prior to installation.
