Images are for presentation; refer to the spec sheet for exact details.
BR-2350
Two-Piece Toilet
ALTO™
12″ rough-in · 1.28 gpf

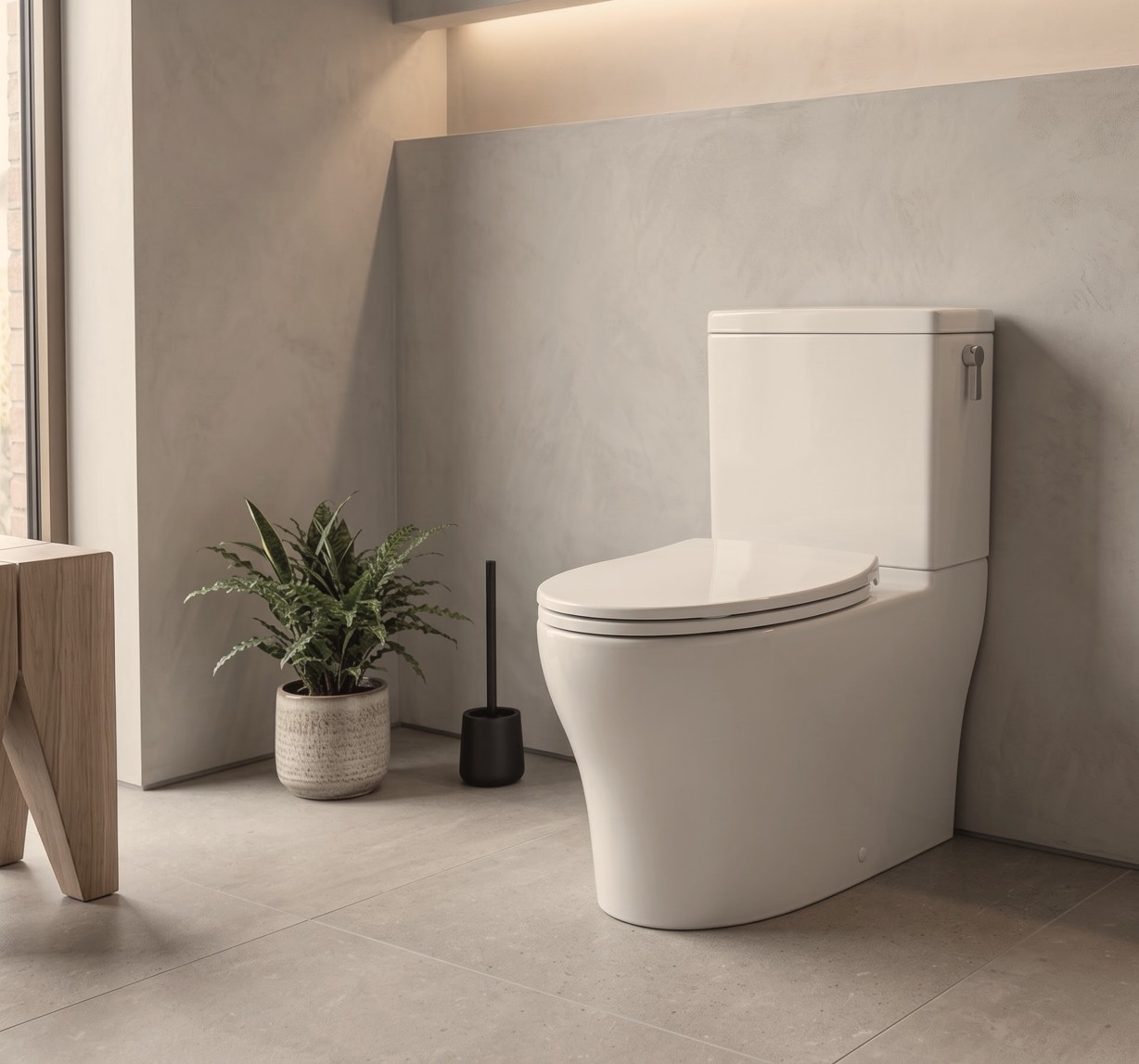

A two-piece elongated toilet in vitreous china with a reversible tank and skirted bowl.
Excess eddy siphon action at 1.28 gpf (4.8 Lpf). Nominal size 28″ × 15″ × 30-1/2″.
Dimensions
- Length
- 710 mm [28″]
- Width
- 380 mm [15″]
- Height
- 775 mm [30-1/2″]
- Bowl height
- 425 mm
- Rough-in
- 305 mm [12″]

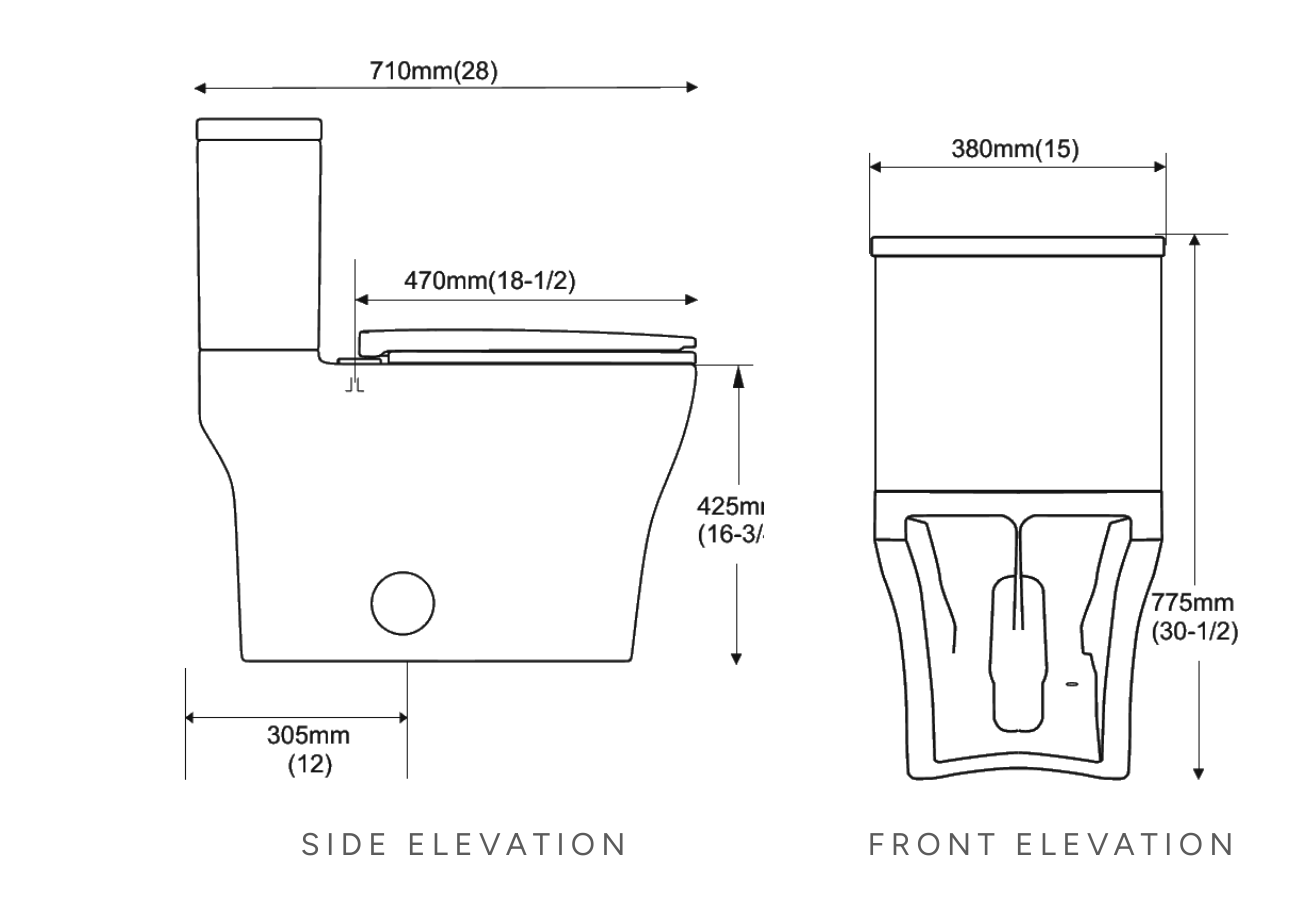

All dimensions are nominal. Confirm actual measurements on the dimensioned drawing before installation.
Product features
- 12″ (305 mm) rough-in
- High efficiency: 1.28 gpf / 4.8 Lpf
- Reversible tank, skirted bowl
- 2″ fully-glazed trapway
- R&T cUPC certified flush valve
- Soft-close seat, chrome-plated side wrench
- cUPC; ADA per ICC/ANSI A117.1-2009
Specifications
| Configuration | Two-piece, reversible tank; skirted bowl |
|---|---|
| Bowl shape | Elongated |
| Rough-in | 12″ (305 mm) min., finished wall to C/L of outlet |
| Overall length | 710 mm (28″) |
| Overall width | 380 mm (15″) |
| Overall height | 775 mm (30-1/2″) |
| Bowl height | 425 mm |
| Material | Vitreous china |
| Glaze | Self-clean glazing |
| Flush rate | 1.28 gpf / 4.8 Lpf (high efficiency) |
| Flush valve | R&T cUPC certified water flush valve |
| Trapway | 2″ fully-glazed |
| Bowl action | Excess eddy siphon action bowl |
| Features | Soft-close seat; chrome-plated side wrench (trip lever); 100% factory flush tested |
| Included | 2 bolt caps. Supply not included (order separately) |
| Standards (as stated) | ASME A112.19.2M; cUPC (IAPMO); ADA requirements of ICC/ANSI A117.1-2009 |
All data from the BR-2350 spec sheet. Product dimensions may vary slightly due to industry-standard manufacturing tolerances. Confirm actual measurements prior to installation.
