Images are for presentation; refer to the spec sheet for exact details.
BR-S101
Wall-Mount Sink
NOVA™ Collection
Nominal 24″ · rectangular
A rectangular white ceramic sink that mounts on the wall or sits on a countertop as a vessel.
A single faucet hole and overflow, for residential and commercial projects.
Also in the NOVA™ Collection: the BR-2345 one-piece toilet.
Dimensions
- Length
- 24″ (23.6″ per spec table)
- Width
- 17.13″
- Height
- 5.91″
- Drain outlet
- Ø1.77″

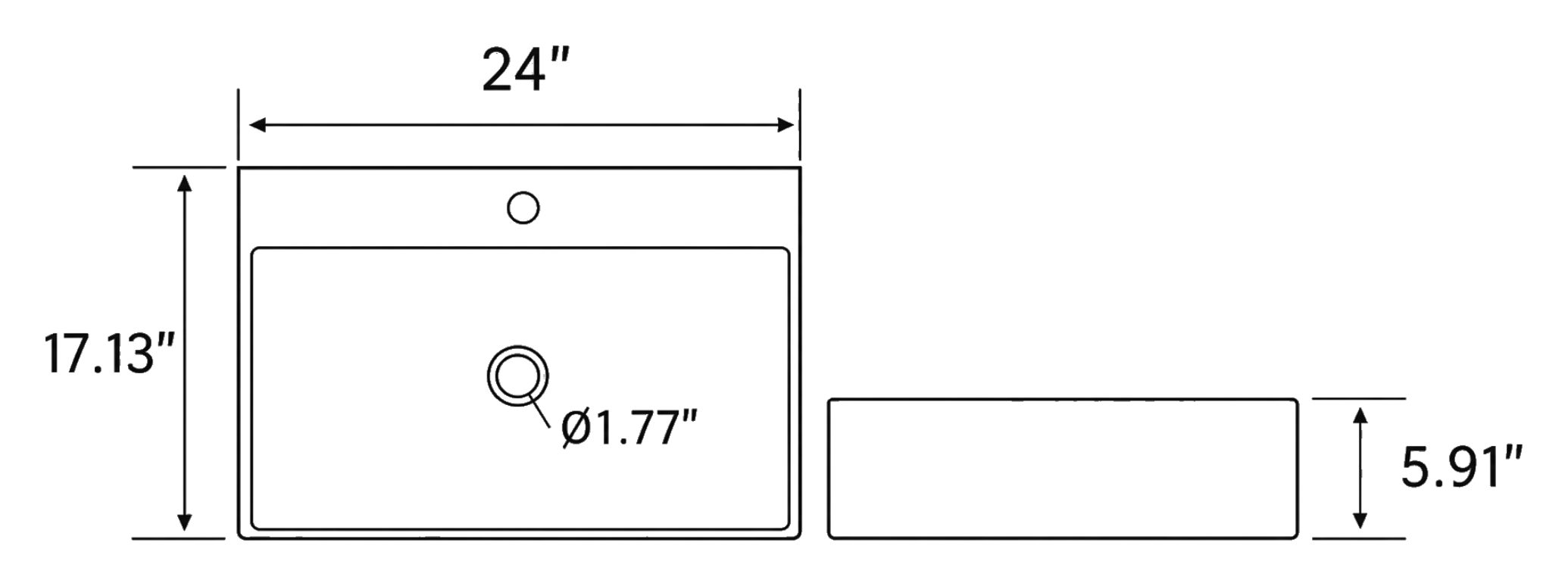

All dimensions are nominal. Confirm actual measurements on the dimensioned drawing before installation.
Product features
- Wall-mount or vessel (countertop) installation
- White ceramic
- Single faucet hole
- Overflow included
- Ø1.77″ drain outlet, standard size
- ADA compliant; depends on installation height and clearances
Documents
Specifications
| Installation | Wall-mount or vessel (countertop); residential and commercial |
|---|---|
| Shape | Rectangular |
| Overall length | Nominal 24″ (actual 23.6″ per drawing) |
| Overall width | 17.13″ |
| Overall height | 5.91″ |
| Faucet holes | Single |
| Overflow | Included |
| Drain outlet | Ø1.77″ (standard drain size) |
| Material | Ceramic |
| Color | White |
| Accessibility (as stated) | ADA compliant. Per the sheet, compliance depends on installation height, clearances and project requirements. |
Nominal sizes are rounded; refer to the dimensioned drawing for actual dimensions.
All data from the BR-S101 spec sheet. Product dimensions may vary slightly due to industry-standard manufacturing tolerances. Confirm actual measurements prior to installation.
