Images are for presentation; refer to the spec sheet for exact details.
BR-F1700
Freestanding Bathtub
ARC™
66.93″ × 31.50″ × 22.83″ · 1700 × 800 × 580 mm
A one-piece freestanding oval bathtub in solid surface (stone resin), finished in matte white.

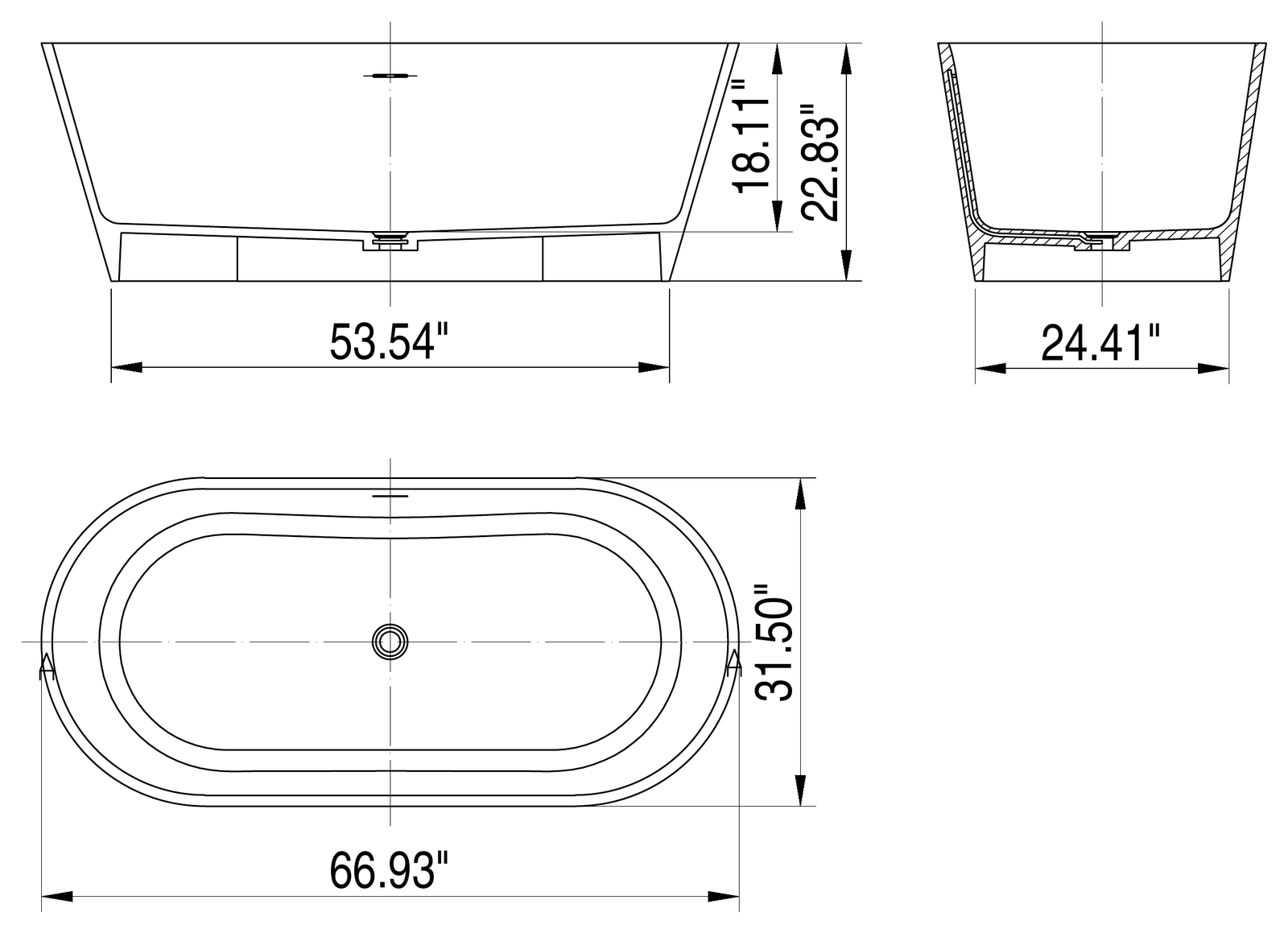

A seamless, double-ended shell with a center drain and an integrated overflow. Confirm actual dimensions on the dimensioned drawing.
Dimensions
- Length
- 66.93″ (1700 mm)
- Width
- 31.50″ (800 mm)
- Height
- 22.83″ (580 mm)
- Interior depth
- 18.11″ (460 mm)
- Interior bottom length
- 53.54″ (1360 mm)
- Base width (end)
- 24.41″ (620 mm)
- Drain
- Center
All dimensions are nominal. Confirm actual measurements on the dimensioned drawing before installation.
Product features
- Freestanding installation
- Solid surface (stone resin) construction
- Matte white finish
- Seamless one-piece shell
- Non-porous surface
- Matte finish can be renewed and minor surface marks repaired
- Integrated overflow
- Center drain
- Nominal 66.93″ × 31.50″ × 22.83″ (1700 × 800 × 580 mm)
Documents
Specifications
| Installation | Freestanding |
|---|---|
| Shape | Oval, double-ended |
| Overall length | Nominal 66.93″ (1700 mm) |
| Overall width | Nominal 31.50″ (800 mm) |
| Overall height | Nominal 22.83″ (580 mm) |
| Interior depth | 18.11″ (460 mm) |
| Interior bottom length | 53.54″ (1360 mm) |
| Base width (end) | 24.41″ (620 mm) |
| Drain | Center drain |
| Overflow | Integrated overflow |
| Material | Solid surface (stone resin) |
| Finish | Matte white |
| Construction | Seamless one-piece shell; non-porous surface |
Nominal sizes are rounded; refer to the dimensioned drawing for actual dimensions.
All data from the BR-F1700 spec sheet. Product dimensions may vary slightly due to industry-standard manufacturing tolerances. Confirm actual measurements prior to installation.
